Reborn Pro3 Foldable Tower Bimini Installation Guide

Designed and produced by Reborn Towers

WARNING: BIMINI MUST BE FOLDED when driving at high speeds (>40MPH) to ensure product and personal safety.


First please check if you have the correct size of bimini

This bimini is designed for Reborn Launch and LaunchX tower specially. It cannot fit other Origin &Reborn towers or other brands of universal tower on market.

We offer 2 sizes 1900V and 2200V.

Size 1900V can fit boat beam under 88in.

Size 2200V can fit boat beam above 88in.

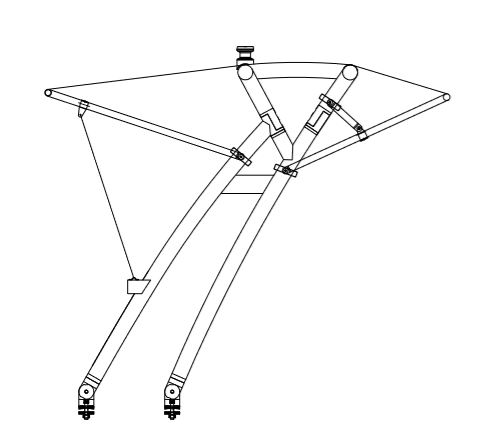

Step1: Install the clamps on the tower referring to the positions as shown in below picture. The positions of clamps are very important to ensure the bimini have the nicest shape.

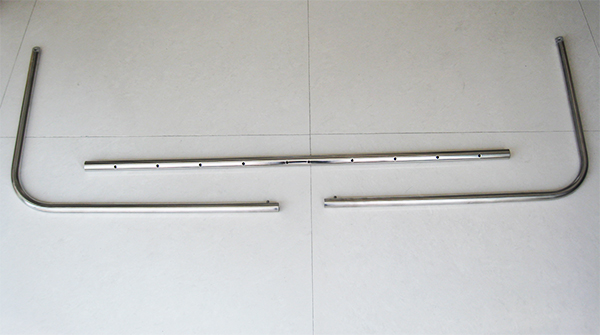

Step2: Measure the distance between the left and right clamp, then assemble the stainless frame as shown in the picture, use the pins to adjust the width of the bimini feet as close as the tower clamps you just measured.



Step3: Attach the stainless frames onto the tower.

Double check above drawing before you attach the bimini legs onto the tower. Make sure the longer bimini leg with nylon strap attach to rear leg, and the short legs attach to front leg.

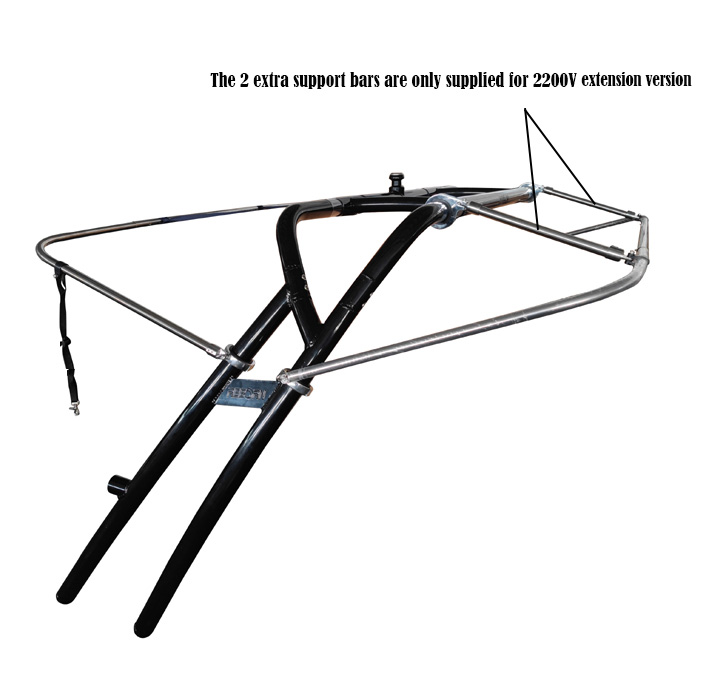

Attention: If you have a 2200V extension version of bimini, you need to attach the 2 extra support bars to tower top H section with the supplied clamps.


Step4: Wear the canvas onto the stainless frame with zipper.

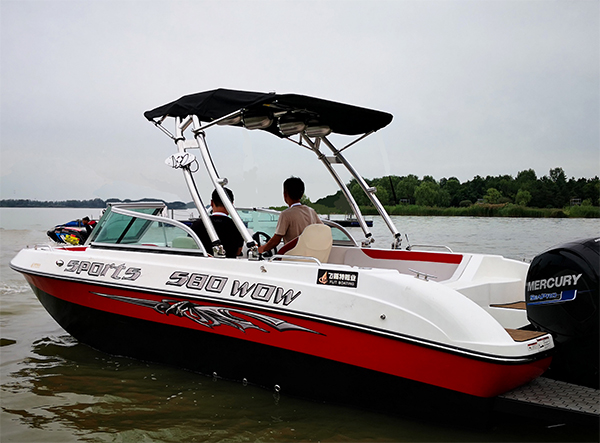

Step5: Adjust the canopy fit the frame perfectly, tighten the canopy with straps.

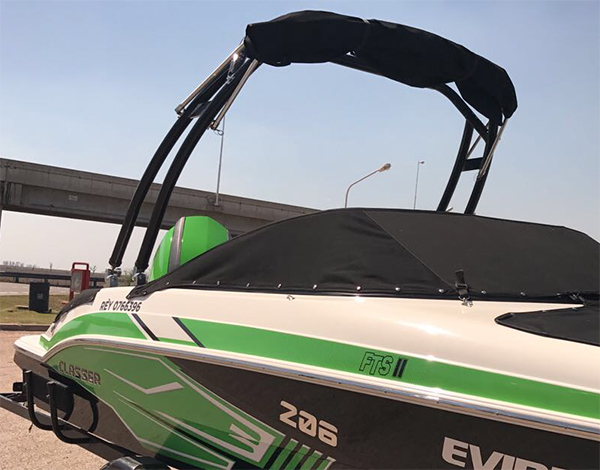

When you don't use the bimini top, you can fold it and wear the boot as show in below picture.




WARNING

Please keep in mind the bimini is rated up to 40MPH, please fold the tower bimini when used at high speeds (>40MPH), Violation will damage the product or cause serious personal injuries.
