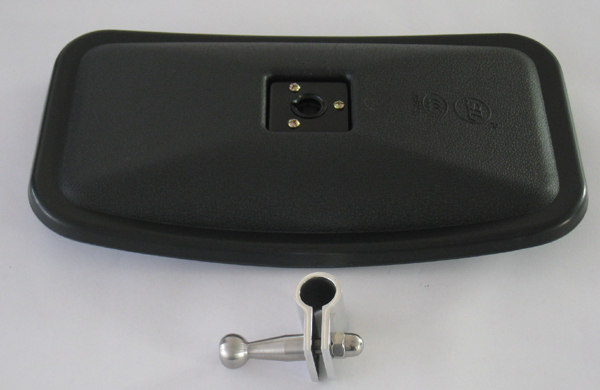

Step1.Remove the 3x small screws from the square cover on the mirror.

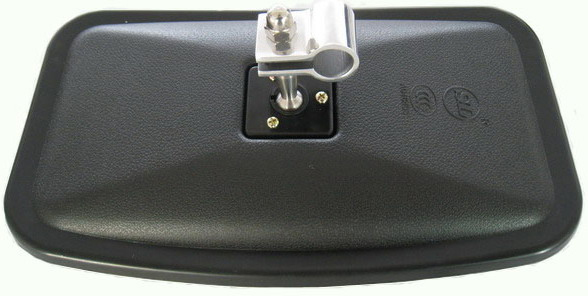

Step2.Insert the bracket through the hole and retighten the 3x screws

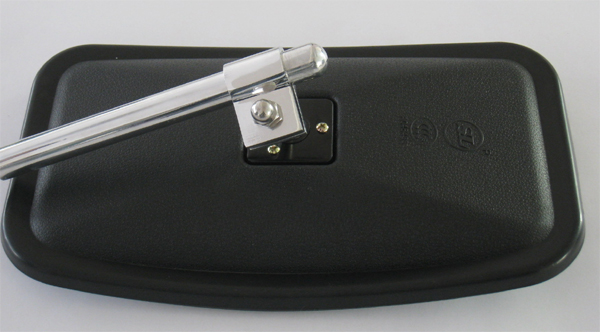

Step3.Insert the aluminum rod into the mirror bracket, and tighten the screw cap.

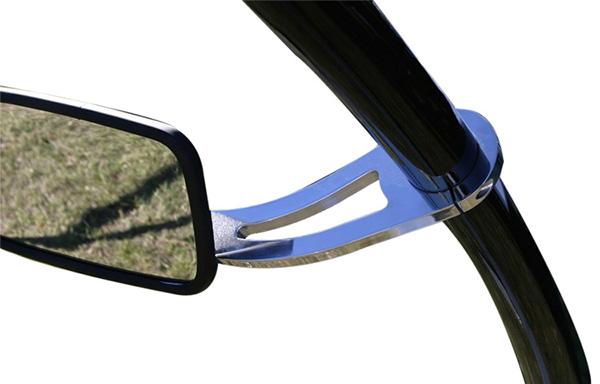

Step4.Pick out the correct size of rubber collar and attach the mirror arm onto your tower tube.

Care and Maintenance

I. Be sure to check and tighten all fasteners and connections prior to every use.

II. You can maintain the new appearance of your mirror arm by wiping with a clean damp cloth after each use.

Soapy water, car wax or a commercially available marine water spot remover can be used as needed.

Avoid abrasive materials that might scratch the finish.

III. Always rinse rack after using on salt (brackish) water.
