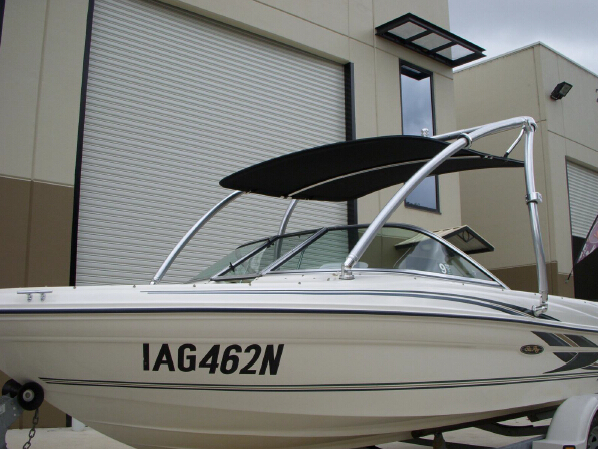

Reborn Pro Tower Bimini Installation Guide


Please take a few minutes to read the entire installation instructions and become familiar with the parts and installation before beginning to ensure a high quality, trouble free installation. The assembly can be more easily begun on the ground. A second person will make installation onto the tower more manageable.

Be aware of the following:
· This tower bimini is designed to fit all LT wakeboard’s towers and most other popular brand of towers, the pictures show the position of the bimini rings on LTX tower.
· Please be careful when your boat is approaching bridges or overpasses.
· Please don’t modify this product, climb, ride or stand on it.
· WARNING: Traveling at speeds in excess of 35 mph may cause damage to your bimini top. The canvas should be removed trailering your boat.


The Frame Structure


Step 1: Constructing The frame

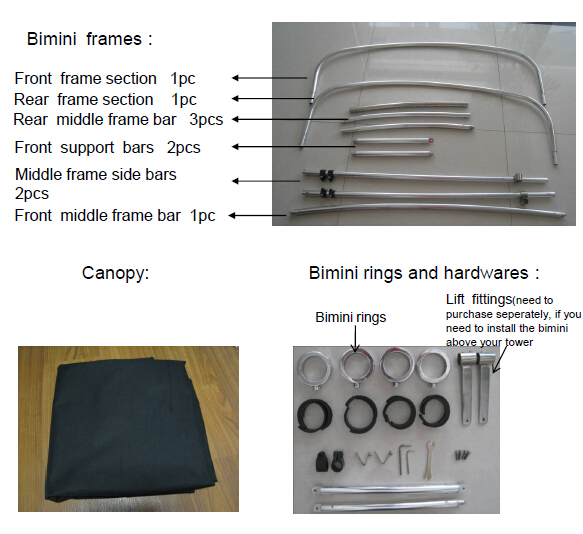

- Distinguish the ends of the middle frame side bars. The 2 mini clamps are at the front and the cross fitting is at rear of the side bars.
-The front frame section and the rear frame section are interchangable.
-To prevent damage to the side rails, loosen the set screws prior to moving or rotating the mini clamps.
- Connect front/rear frame sections to the middle side bars.


Step 2: Install the rear middle frame bar.

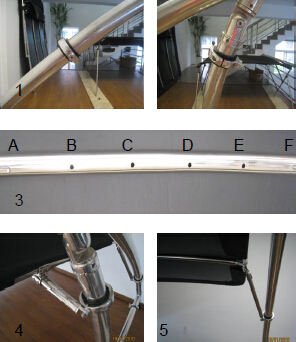

Assemble the therear middle frame bar as shown in the right figures #1-#3.
You can do it easily with the pin system.
Connect the rear middle frame bar on the frame through the cross fittings.
If the bimini top will be installed above your tower, install the lift fittings (available separately) on the rear frame bar. (as shown in the right figure #6)


Important note :

If you want to mount this bimini top under the top section of your wakeboard tower, please don’t install the lift fittings.


Step 4 : Install the canopy.
Install the canopy on the frame as shown in the right pictures, you can do it easily with the zipper.

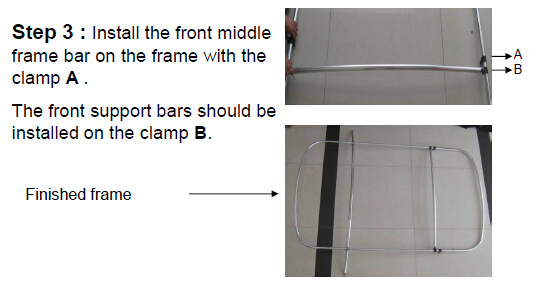

Assemble the front support bar on the clamp B as shown in the right picture.

Important note :
If you want to install this bimini top under the top section of your wakeboard tower, please refer to step5.
If you want to install this bimini top above the top section of your wakeboard tower, please refer to step6.

Step 5 :Install the bimini top under the top section of your wakeboard tower.
Install the four bimini rings on the tower’s bars as shown in the right pictures, but don’t tighten the bolts of the rings.
Please measure the distance between the 2 rings mounted on the rear bars of tower, and adjust the pins to let the total length of rear frame bar to fit it.
Lift the bimini top, connect the rear middle frame bar with the rings mounted on the rear bars of the tower.
Connect the front support bars with the bimini rings mounted on the front bars of tower.

Now you have installed the tower bimini on the tower as you want.Please make a bit adjustment for the ring to get the best position, then tighten all of the bolts and set screws.


Step 6 : Install the bimini top above on the tower

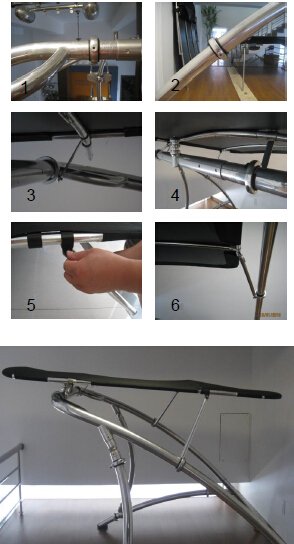

Mount two rings on the front bars of tower, and mount two rings on the top section as shown in the right pictures, but don’t tighten the bolts of the rings.
Let the two intubations of the rear middle frame bar to hide inside the frame.
Lift the bimini top, Connect the two lift fittings with the rings mounted on the top section of the tower.
Connect the front support bars with the bimini rings mounted on the front bars of tower.
Now you have installed the tower bimini on the tower as you want.
Please make a bit adjustment for the ring to get the best position, then tighten all of the bolts and set screws.


WARNING

Please keep in mind the bimini is rated up to 40MPH, please fold the tower bimini when used at high speeds (>40MPH), Violation will damage the product or cause serious personal injuries.
